DIN FLANGE PN6-PN40

Threaded Flange

DIN 2565 PN6 / DIN 2566 PN16 THREADED FLANGE
SCREWED FLANGE

Flange Dimensions & Approximate Masses

DIN 2565 PN 6 THREADED FLANGE SPECIFICATION

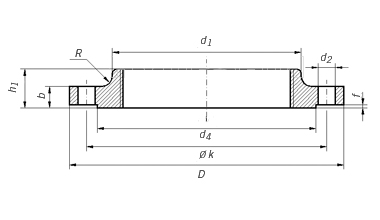

Rated Diameter		Flange					Neck	Raised face		Screws			Weight (7,85 Kg/dm3)
Rated Diameter	d1	Thread	D	b	k	h1	d3	d4	f	Holes	Thread	d2	Kg
15	21,3	R 1/2	80	12	55	20	30	40	2	4	M 10	11	0,373
20	26,9	R 3/4	90	14	65	24	40	50	2	4	M 10	11	0,59
25	33,7	R 1	100	14	75	24	50	60	2	4	M 10	11	0,743
32	42,4	R 1 1/4	120	14	90	26	60	70	2	4	M 12	14	1,05
40	48,3	R 1 1/2	130	14	100	26	70	80	3	4	M 12	14	1,2
50	60,3	R 2	140	14	110	28	80	90	3	4	M 12	14	1,37
65	76,1	R 2 1/2	160	14	130	32	100	110	3	4	M 12	14	1,92
80	88,9	R 3	190	16	150	34	110	128	3	4	M 16	18	2,82
100	114,3	R 4	210	16	170	38	130	148	3	4	M 16	18	3,19
125	139,7	R 5	240	18	200	40	160	178	3	8	M 16	18	4,47
150	165,1	R 6	265	18	225	44	185	202	3	8	M 16	18	5,3

DIN 2566 PN16 THREADED FLANGE SPECIFICATION
Rated Diameter		Flange					Neck	Raised face		Screws			Weight (7,85 Kg/dm3)
Rated Diameter	d1	Thread	D	b	k	h1	d3	d4	f	Holes	Thread	d2	Kg
15	21,3	R 1/2	95	14	65	20	35	45	2	4	M 12	14	0,613
20	26,9	R 3/4	105	16	75	24	45	58	2	4	M 12	14	0,91
25	33,7	R 1	115	16	85	24	52	68	2	4	M 12	14	1,1
32	42,4	R 1 1/4	140	16	100	26	60	78	2	4	M 16	18	1,6
40	48,3	R 1 1/2	150	16	110	26	70	88	3	4	M 16	18	1,78
50	60,3	R 2	165	18	125	28	85	102	3	4	M 16	18	2,43
65	76,1	R 2 1/2	185	18	145	32	105	122	3	4	M 16	18	3,18
80	88,9	R 3	200	20	160	34	118	138	3	8	M 16	18	4,12
100	114,3	R 4	220	20	180	38	140	158	3	8	M 16	18	4,47
125	139,7	R 5	250	22	210	40	168	188	3	8	M 16	18	6,13
150	165,1	R 6	285	22	240	44	195	212	3	8	M 20	22	7,92

NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696


Production Capacity & Purchase Details

1.	Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2.	Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105
3.	Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4.	Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5.	Monthly Output: 3000 tons per Month.
6.	Delivery Terms: CIF, CFR, FOB, EXW.
7.	Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8.	Minimum Order Quantity: 1Ton or 100Pcs.
9.	Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10.	Find More Requirements In Flanges Market.
